Waterproof Buccaneer Connectors - 900 Series

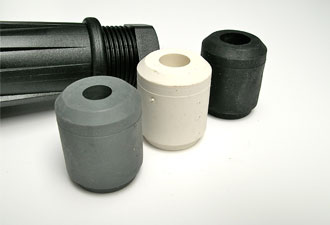

A range of high quality 32A plugs and sockets manufactured by Bulgin which provide a strong & safe IP68 mains rated connection. Supplied as a free socket and fixed plug for boat side connection. If required the inner modules are interchangeable to reverse the gender for shore side connection. The units are easy to fit with screw connections and are supplied with suitable glanding for 13 - 15mm cable. Additional gland pack for cable diameter 7-13mm and a housing adaptor are available if required.

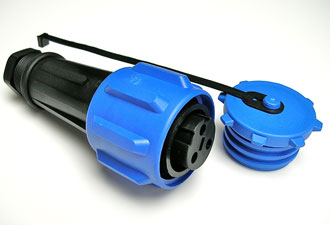

Free Sockets
B-1450 3 pole free socket and cap
B-1454 5 pole free socket and cap
- Dimensions :
- Length:
Max dia:
- 127mm
58mm
Technical Information

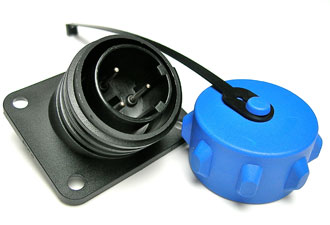

Fixed Plugs
B-1451 3 pole fixed plug and cap
B-1455 5 pole fixed plug and cap
- Dimensions :
- Footprint:
Max height:
- 70 x 60mm
52mm (ex cap)
Technical Information

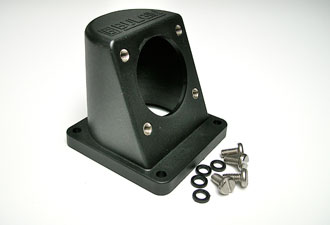

Housing
B-1452 Housing for B-1451 or B-1455
- Dimensions :
- Footprint:
Max height:
- 85 x 85mm
83mm
Technical Information
