Junction Boxes
Secure and dry connections are important to the reliability of electrical and electronic equipment. The JB Series is designed to enhance and protect all installations below deck. Using a connector block, the body and screws of which are made from nickel plated brass, ensures long lasting connections. Leaf protection also ensures good sound connections to the cable - no screws to damage the cables. The boxes are supplied with fixing screws.

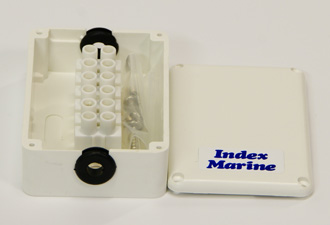

JB1P
- Size:
- Cable Entry:
- Material:
- Type of Connector:
- Part Number:
- L72 x W50 x H25mm
- 2 x 6.5mm grommets
- Plastic
- 6 way Connector Block
- A4-JB1P
Technical Information

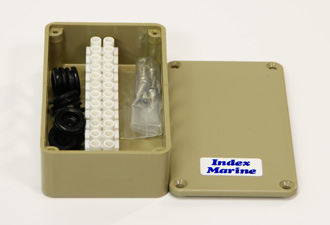

JB3P
- Size:
- Cable Entry:
- Material:
- Type of Connector:
- Part Number:
- L111 x W60 x H31mm
- 8 x 10mm blind grommets
- ABS Plastic
- 12 way Connector Block
- A4-JB3P
Technical Information

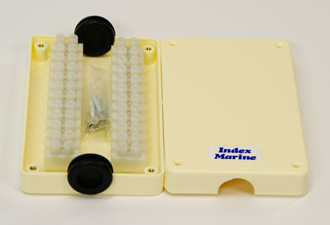

JB4P
- Size:
- Cable Entry:
- Material:
- Type of Connector:
- Part Number:
- L143 x W80 x H30mm
- 2 x 15mm blind grommets
- ABS Plastic
- 2 x 12 way Connector Block
- A4-JB4P
Technical Information

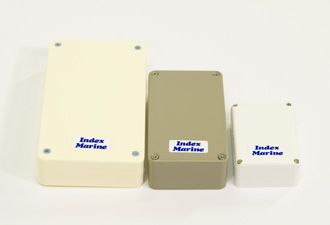

Blank Boxes
Blank Boxes - no holes or connector block inserts. Supplied with lid and fixing screws.
- Size:
Part Number: - Size:
Part Number: - Size:
Part Number:
- L72 x W50 x H25mm
A4-JB1PB - L111 x W60 x H31mm
A4-JB3PB - L143 x W80 x H30mm
A4-JB4PB

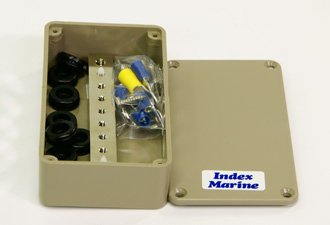

JB/BB6
- Size:
- Cable Entry:
- Material:
- Type of Connector:
- Part Number:
- L111 x W60 x H31mm
- 8 x 10mm blind grommets
- ABS Plastic
- 6 Way Bus Bar
- A4-JB/BB6
Technical Information

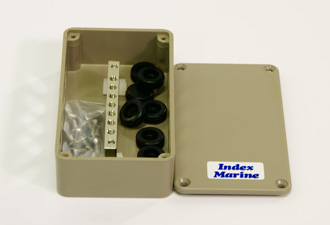

JB/BB6R
- Size:
- Cable Entry:
- Material:
- Type of Connector:
- Part Number:
- L111 x W60 x H31mm
- 8 x 10mm blind grommets
- ABS Plastic
- 6 Way Bus Bar - Rings
- A4-JB/BB6R
Technical Information

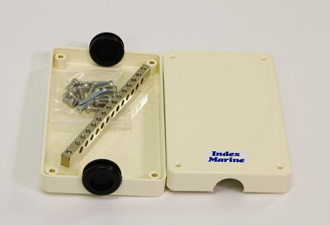

JB/BB12
- Size:
- Cable Entry:
- Material:
- Type of Connector:
- Part Number:
- L143 x W80 x H30mm
- 2 x 15mm blind grommets
- ABS Plastic
- 12 way Busbar
- A4-JB/BB12
Technical Information
