Busbars
A range of high quality nickel plated brass busbars manufactured by Index Marine. They are available in 6 and 12 way and as an 8mm commoning post. All models are supplied with plastic feet and come complete with all necessary fixings. Busbars are also available mounted in plastic enclosures - see Junction Box page.
F-2241

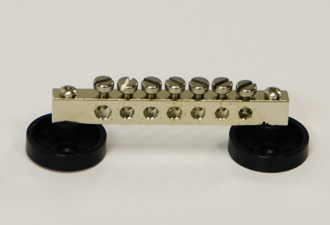

6 Way Cable Entry Busbar
- Size:
- Cable entry:
- Material:
- Amperage Rating:
- Part Number:
- L75 x H20mm
- 1 x 5mm, 6 x 4mm
- Nickel plated Brass
- 100A
- F-2241
Technical Information
F-2242

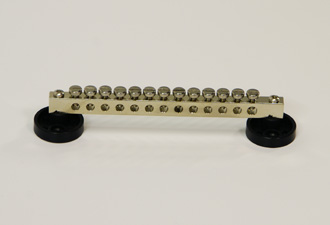

12 Way Cable Entry Busbar
- Size:
- Cable entry:
- Material:
- Amperage Rating:
- Part Number:
- L116 x H20mm
- 1 x 5mm, 12 x 4mm
- Nickel plated Brass
- 100A
- F-2242
Technical Information
F-2243

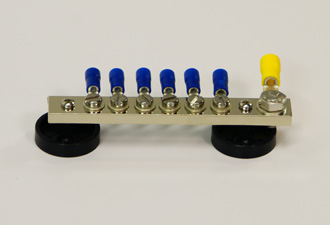

6 Way Busbar for Ring Terminals
- Size:
- Cable entry:
- Material:
- Amperage Rating:
- Part Number:
- L95 x H17mm
- 1 x Yellow, 6 x Blue rings
- Nickel plated Brass
- 100A
- F-2243
Technical Information
F-2244

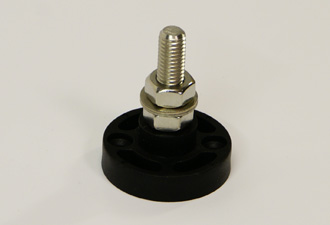

Commoning Post
- Size:
- Cable Stud Size:
- Material:
- Part Number:
- D48 x H35mm
- 8mm
- Stainless Steel
- F-2244
Technical Information
