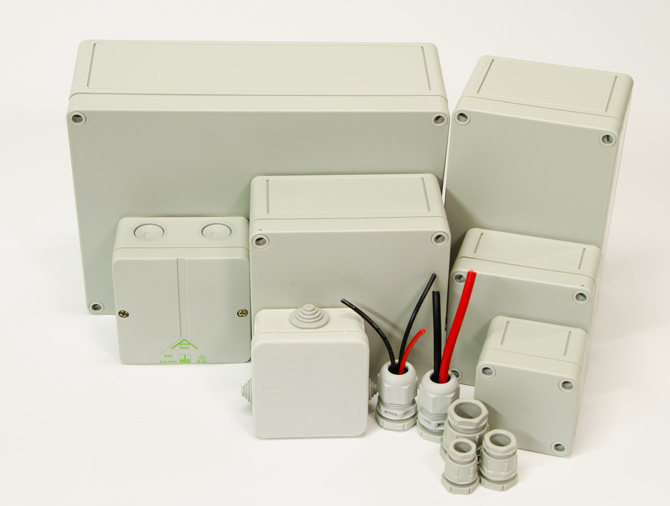

Waterproof Enclosures and Glands
The WB range of waterproof junction boxes will ensure that electrical connections are kept dry. Boxes are supplied either as blank boxes for you to customise according to your requirements, or are supplied pre-fitted with varying combinations of cable glands. Supplied with lid and fixing screws which do not interfere with the waterproof integrity of the box.

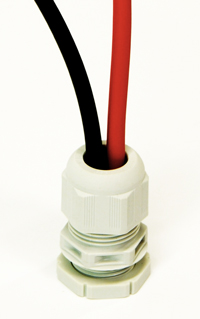

IP68 Cable Glands
- Part no.
- A6-312
- A6-320
- A6-325
- A6-332
- Inserts for A6-320
- A6-3202
- A6-3203
- Cable Size
- 3-7mm
- 6-13mm
- 9-17mm
- 13-21mm
- 2 x 4-5mm
- 3 x 2.5-4mm
- Fitted With
- M12 light grey cable gland plus back nut
- M20 light grey cable gland plus back nut
- M25 light grey cable gland plus back nut
- M32 light grey cable gland plus back nut
- 2 cable insert for A6-320
- 3 cable insert for A6-320
A5-WB1
- Part no.
- A5-WB1
- A5-WB2
- A5-WB3
- A5-WB4
- A5-WB4/1
- A5-WB4/2
- A5-WB5
- A5-WB5/1
- A5-WB5/2
- A5-WB6
- A5-WB7
- A5-WB8
- A5-WB9
- Size
- L 94 x W 65 x H 57mm
- L 130 x W 94 x H 57mm
- L 110 x W 110 x H 66mm
- L 65 x W 65 x H 57mm
- L 65 x W 65 x H 57mm
- L 65 x W 65 x H 57mm
- L 94 x W 94 x H 57mm
- L 94 x W 94 x H 57mm
- L 94 x W 94 x H 57mm
- L 130 x W 130 x H 75mm
- L 180 x W 110 x H 90mm
- L 180 x W 182 x H 90mm
- L 254 x W 180 x H 90mm
- Fitted With
- -
- -
- -
- -
- 2 x A6-312 Cable Glands
- 2 x A6-320 Cable Glands
- -
- 4 x A6-312 Cable Glands
- 4 x A6-320 Cable Glands
- -
- -
- -
- -
- Material
- Polystryol
- Polystryol
- Polystryol
- Polystryol
- Polystryol
- Polystryol
- Polystryol
- Polystryol
- Polystryol
- Polystryol
- Polystryol
- Polystryol
- Polystryol
- Rating
- IP65
- IP65
- IP65
- IP65
- IP65
- IP65
- IP65
- IP65
- IP65
- IP65
- IP65
- IP65
- IP65

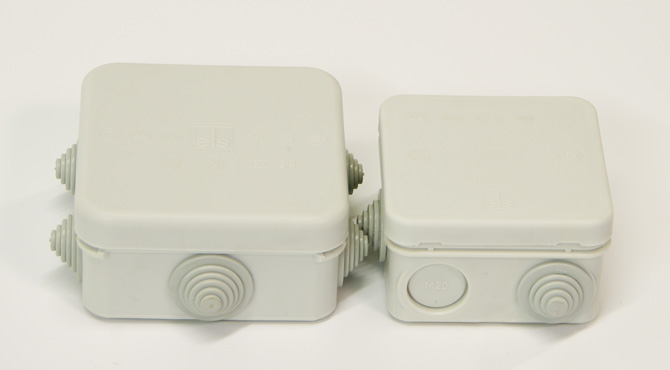

A5-WB20
These IP54 boxes offer a cost effective alternative to protect electrical connections with a temperature resistance of up to 100deg C. Universal cable insertion possibilities via conduit, CG glands or pre-mounted seals which can be cut to suit cable size.
- Part no.
- A5-WB20
- A5-WB21
- Size
- L 75 x W 75 x H 42mm
- L 90 x W 90 x H 45mm
- Fitted With
- Moulded Seals - cut to suit cable size
- Moulded Seals - cut to suit cable size
- Material
- Plastic
- Plastic
- Rating
- IP54
- IP54

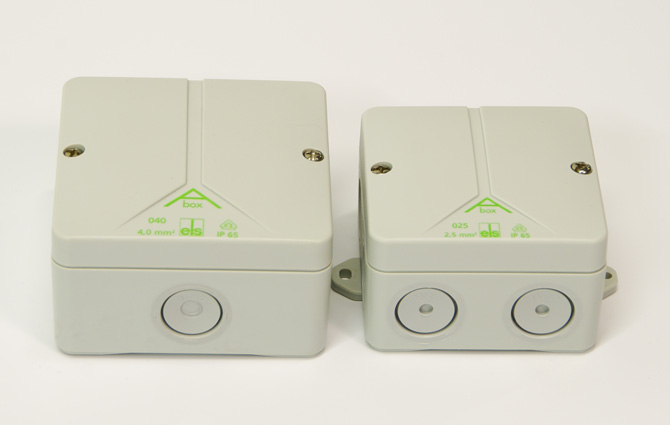

A5-WB25
The WB25 and 26 have a self sealing elastic membrane for easy cable insertion moulded into the box which provides an excellent seal. These can also be removed to allow the insertion of standard CG glands. Manufactured in non-flammable polystyrene and waterproof to IP65.
- Part no.
- A5-WB25
- A5-WB26
- Size
- L 80 x W 80 x H 52mm
- L 93 x W 93 x H 55mm
- Fitted With
- Moulded Seals
- Moulded Seals
- Material
- Polystrene
- Polystrene
- Rating
- IP65
- IP65
