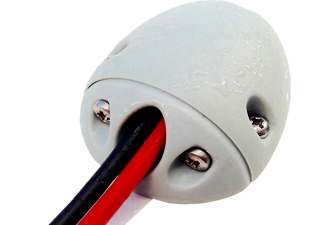

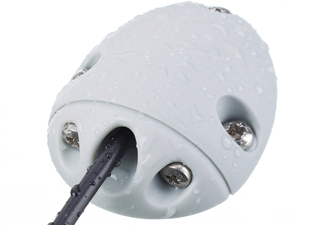

Cable Gland - Side Entry
The SE range of glands offer the perfect solution for vessels with limited space or when loops from conventional top entry glands are not appropriate.
- Quick and easy to fit
- Made form tough UV stable glass reinforced Nylon
- Waterproof - IP68
- SE1, SE5 & SE6 are single cable entry with a size range of 2 to 12m
- SE7 twin cable entry 2 x 3.5mm, 2 x 5.5mm seals.
- Ideal for use when installing solar panels, side mount navigation lights, VHF aerials or other cable transits.
- Manufactured in the UK
Fitting Instructions
SE1
- Dimensions:
- Cable Range:
- Part Number:
- Supplied with 3 seals
- 55x42x16.5mm
- 2-7mm
- A1-SE1
SE5
- Dimensions:
- Cable Range:
- Part Number:
- Supplied with 3 seals
- 81.5x62x24mm
- 7-9mm
- A1-SE5
SE6
- Dimensions:
- Cable Range:
- Part Number:
- Supplied with 3 seals
- 81.5x62x24mm
- 10-12mm
- A1-SE6
NEWTwin Cable Side Entry IP68 Gland.
The new SE7 is supplied with 2 seals suitable for 2 cables the same size 3mm to 6mm diameter making it ideal for waterproof cable installations which require two single core cables.
SE7
- Dimensions:
- Cable Range:
- Part Number:
- Supplied with 2 seals
- 81.5x62x24mm
- 2x3.5mm or 2x5.5mm
- A1-SE7
