Cable Glands - Aluminium

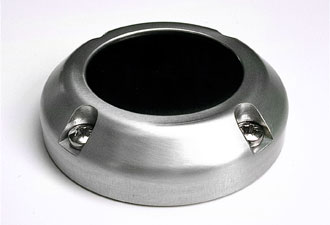

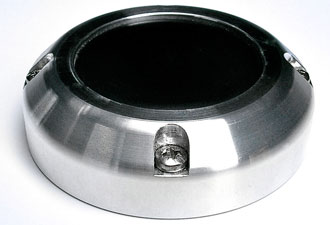

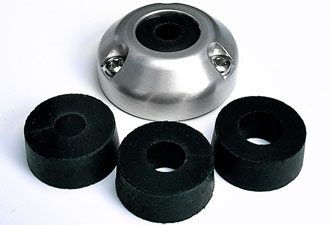

The DG Series aluminium cable glands are made from marine grade anodised aluminium.They are available in an aperture range of 8mm to 50mm and have an attractive, low profile shape. The range has passed independent rigorous dust and waterproof testing to IP 68. Each unit is supplied with clear fitting instructions and A4 stainless steel fixings. DG Deck Glands are easy to fit and do not require the removal of fitted connectors when installing.
More Info
Fitting Instructions
DG8A
- Dimensions:
- Cable Size:
- Part Number:
- 35ø x 12mm
- 2.5-6mm
- A1-DG8A
DG20A
- Dimensions:
- Cable Size:
- Part Number:
- 49ø x 19mm
- Drill to suit
- A1-DG20A
DG21A
- Dimensions:
- Cable Size:
- Part Number:
- 49ø x 19mm
- 4.5-9mm
- A1-DG21A
DG22A
- Dimensions:
- Cable Size:
- Part Number:
- 49ø x 19mm
- 9-14mm
- A1-DG22A
DG30A
- Dimensions:
- Cable Size:
- Part Number:
- 60ø x 19mm
- Drill to suit
- A1-DG30A
DG40A
- Dimensions:
- Cable Size:
- Part Number:
- 70ø x 19mm
- Drill to suit
- A1-DG40A
DG45A
- Dimensions:
- Cable Size:
- Part Number:
- 70ø x 19mm
- 12-15mm
- A1-DG45A
DG50A
- Dimensions:
- Cable Size:
- Part Number:
- 84ø x 23mm
- Drill to suit
- A1-DG50A
