VHF Connectors
A range of high quality coaxial connectors for VHF installations. Where necessary instructions are supplied.

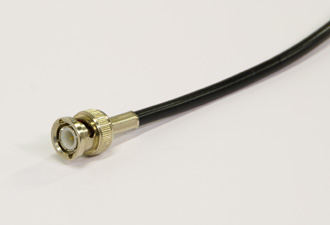

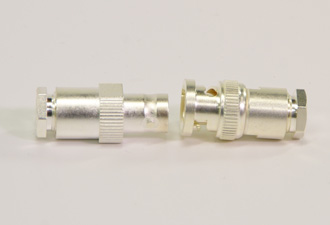

BNC
Bayonet Connector with soldered copper pin
- Ohms Rating:
- Cable entry:
- Material:
- Part Number:
- 50 Ohms
- 5mm (RG58)
- Silver plated Brass
- A6-100
Technical Information

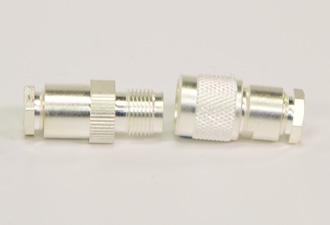

TNC
Threaded Connector with soldered copper pin
- Ohms Rating:
- Cable entry:
- Material:
- Part Number:
- 50 Ohms
- 5mm (RG58)
- Silver plated Brass
- A6-101
Technical Information

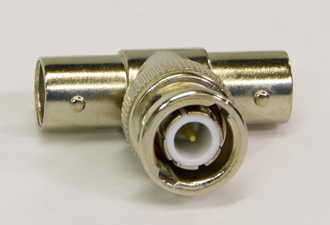

BNC T Piece
T piece inter-connector - 1 x plug, 2 x Jack
- Ohms Rating:
- Part Number:
- 50 Ohms
- A6-102
Technical Information

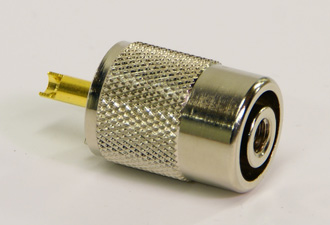

PL259/5
PL259/5 - 5mm RG58 Coax Connector
- Ohms Rating:
- Cable entry:
- Part Number:
- 50 Ohms
- 5mm (RG58)
- A6-104
Technical Information
PL259/10
PL259/10 - 10mm RG213 Coax Connector
- Ohms Rating:
- Cable entry:
- Part Number:
- 50 Ohms
- 10mm (RG213)
- A6-105
Technical Information

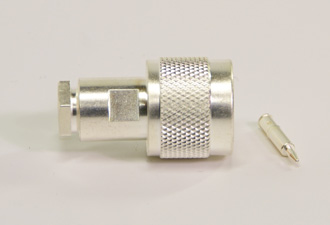

N Plug
N Plug for 5mm RG58 Coax Connector
- Ohms Rating:
- Cable entry:
- Material:
- Part Number:
- 50 Ohms
- 5mm (RG58)
- Silver plated Brass
- A6-106
Technical Information

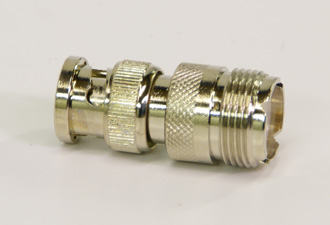

BNC/PL259 Adaptor
BNC/PL259 Adaptor - Plug to Jack
- Ohms Rating:
- Material:
- Part Number:
- 50 Ohms
- plated Brass
- A6-108
Technical Information
In Line F/F Connector
Female to Female inline for PL259's
- Ohms Rating:
- Material:
- Part Number:
- 50 Ohms
- plated Brass
- A6-109
Technical Information
TNC/PL259 Adaptor
TNC/PL259 Adaptor - Plug to Jack
- Ohms Rating:
- Material:
- Part Number:
- 50 Ohms
- plated Brass
- A6-112
Technical Information

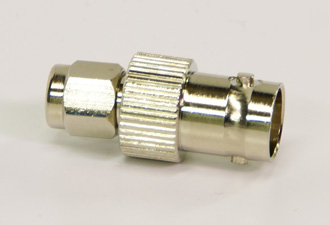

SMA to BNC Jack
- Ohms Rating:
- Material:
- Part Number:
- 50 Ohms
- Plated Brass
- A6-117
Technical Information

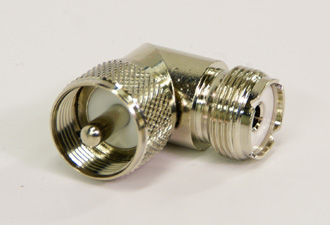

90° PL259 male to female
- Ohms Rating:
- Material:
- Part Number:
- 50 Ohms
- Plated Brass
- A6-122
Technical Information
