DP Series Waterproof Plugs & Sockets

Waterproof Plugs

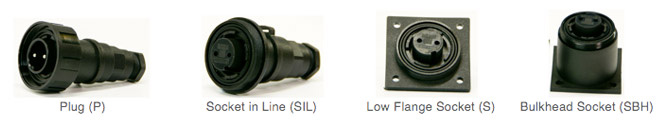

  • Dimensions

  • Plug:
  • Socket in Line:
  • Low Flange Socket:
  • Bulkhead Socket:
  • Max ø

  • 38mm
  • 38mm
  • -
  • -
  • Length /Height

  • 69mm
  • 65mm
  • 16mm
  • 43mm
  • Base Footprint

  • -
  • -
  • 44.5 x 44.5mm
  • 44.5 x 44.5mm
  • Number of Pins
  • 2
  • 3
  • 4
  • 6
  • 7
  • 9
  • Amp
  • 10
  • 10
  • 6
  • 3
  • 3
  • 5
  • Rating
  • (12)
  • (12)
  • (5)
  • (5)
  • (5)
  • (5)
  • 50 & 75 Ω Coax Cable Acceptance
  • 50 Ω - RG58CU, URM43 & URM76
  • 75 Ω - URM70
  •

Ratings: UL, CSA (VDE)

  • Material:
  • Base Gasket:
  • Screw Sets:
  • Waterproof Rating:
  • Approvals:
  • Cable range:
  • Packaging:
  • Glass Reinforced Plastic
  • Neoprene
  • A4 Stainless Steel
  • IP68*
  • UL, CSA and VDE approvals
  • From 3.5mm - 9mm
  • Blister made from re-cycled materials - re-cycle code ♵
Waterproof Plugs

* IP68 rating tested at 1.054kg/sq cm (15lb/sq in) 10m depth for 2 weeks and 9.84kg/sq cm (140lb/sq in)
100m depth for 12 hours.
