Exhaust Temperature Alarm

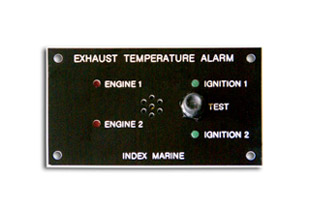

A simple panel mount device will give an audible and visual alarm should the exhaust temperature rise due to pump failure or water blockage. The system is suitable for 12 or 24v operation and provides protection for single or twin engine installation. Sensors are mounted on the exhaust water injection bend. Test button feature to ensure all LED's and alarms function correctly.
An additional output is provided for a second remote alarm and/or warning light (not supplied) should this be required. Supplied with a 90° sensor (other sensor values are available if required) and comes complete with fitting kit of 5 meters connecting cable per sensor, cable ties, terminals and instructions.Dimensions: width 92mm x height 52mm x depth behind panel 30mm
- Specification:
- Panel material:
- Power supply:
- Fixing Centres:
- Built in alarm:

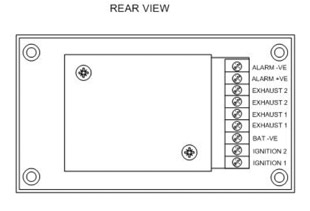

- Connections:
- Remote Alarm Output:
-
Green ignition "power on" LED's - Red high temperature warning LED's
- Splash-proof.
-
- Traffolite
- Suitable for 12 or 24Vdc application
- 82mm x 42mm
- 95Db
- Built in 9 way terminal block
- Max 250Ma
